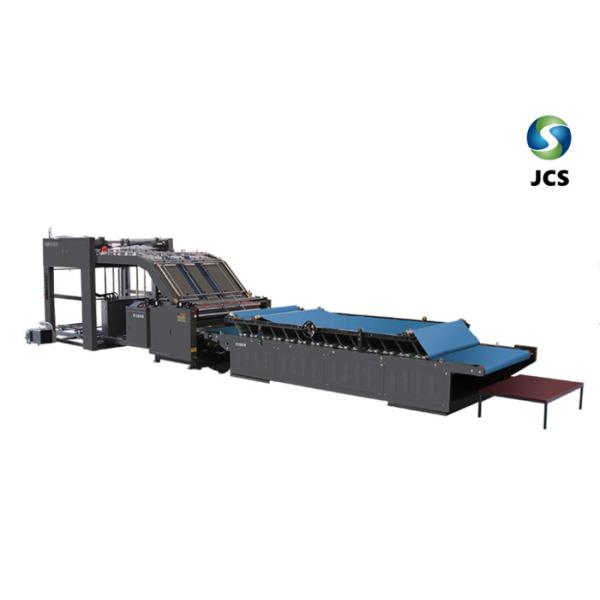

Corrugated Box Automatic Flute Laminating Machine For Making 3 / 5 Layers Paper

Brand Name : JCS

Model Number : JCS-TM-A1300

Certification : CE certificate

Place of Origin : Made In China

MOQ : One Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 50 Sets/Month

Delivery Time : 10 Working Days

Packaging Details : Wrapped With Film

Type : Laminating Machine

Economic Speed : 0-120 PCS/min

Color : Customized

Voltage : 220V/380V/440V

Top paper thickness : 120-500g

Application : Automatic Flute Laminating Machine

Automatic Grade : Automatic

Warranty : 1 Year

Contact Now

Corrugated Box Automatic Flute Laminator For Making 3 Or 5 layers Paper Machine

Brief Introduction

This machine is used for color top sheets and corrugated paper laminating, top paper adopt scale continuous paper feeding, unique front gauge positioning way to insure the bottom paper never exceed. Easy operation and maintenance.

Characteristics

1. Advanced automatic tracking technology, according to the size of the paper automatically adjust the relevant parameters, so that the machine is always running in the best condition

2. Unique front gauge positioning system, accuracy and the bottom paper never exceed; top paper exceed adjustable

3. Equipped with high precision high speed automatic feeder, strengthening type paper feeding device, feeding smoothly

4. Equipped with high precision high speed automatic feeder, strengthening type paper feeding device, feeding smoothly

5. Using the principle of offset printing machine side gauge positioning, error correction for about top paper stack and feeding process

6. Bottom paper using suction automatic feeding, can adjust wind strength in the touch screen, and is equipped with a belt humidifying function

7. Single side adjustment of the roller pressure, and equipped with a dial gauge, the replacement of the bottom paper one-step-to-reach

Specification

Model	JCS-TM-A1300	JCS-TM-A1450	JCS-TM-A1650
Max Sheet size	1300*1250MM	1450*1250MM	1650*1450MM
Min Sheet size	400*400MM	400*400MM	400*400MM
Top sheet thickness	150-600GSM	150-600GSM	175-700GSM
Bottom sheet thickness	A.B.C.E.F corrugated paper, industrial cardboard
Machine speed	7000sheets/Hour	7000sheets/Hour	7000sheets/Hour
Fitting precision	±1mm	±1mm	±1mm
Measurement	11.5x2x2.4M	11.5x2.2x2.4M	11.5x2.4x2.4M
Machine weight	5000KG	5500KG	6000KG
Machine Power	10KW/380V	11KW/380V	12KW/380V
